40′ Flatrack High Cube Container (FR HC)

About the 40′ FR HC container

40′ Flatrack High Cube is a long, reinforced open platform with end frames, designed for very heavy, long and oversized cargo. It is used for machinery, industrial modules, structures and other cargo project cargo, that does not fit into a closed container. The stated high payload applies only when the weight is correctly distributed across the load-bearing side beams, while overhanging cargo requires individual securing, stowage and carrier approval.

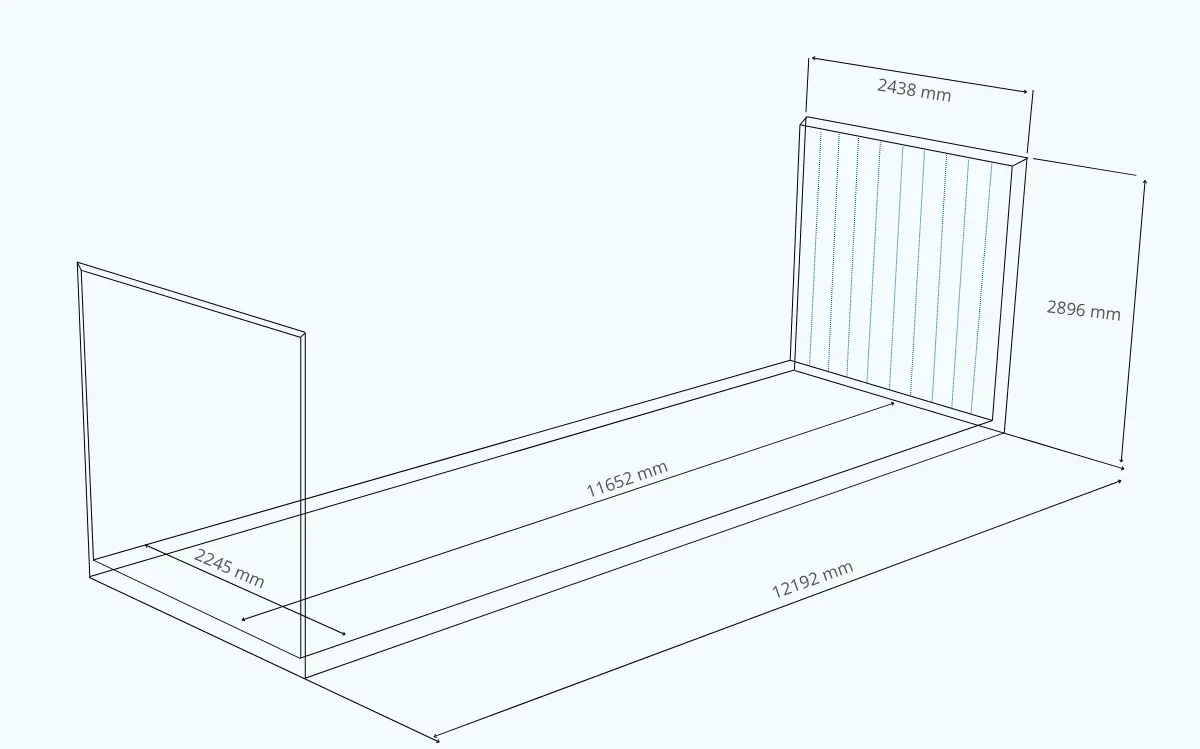

Internal dimensions

Unit of measurement Length Width Height
Millimeters 11,652 2,347 2,265
Feet 38′ 2 3/4″ 7′ 8 3/8″ 7′ 5 1/8″

Loading platform characteristics

Unit of measurement Minimum usable width Platform height
Millimeters 2,245 648
Feet 7′ 4 3/8″ 2′ 1 1/2″

Weight

Unit of measurement Maximum gross weight Tare weight Maximum payload
Kilograms 55,000 5,900 49,100
Pounds 121,254 13,007 108,247

The dimensions, weights and pallet capacities shown are indicative and are based on the specification examples used in the visualiser. Actual values may vary by manufacturer and container series. Pallet capacity is a geometric single-layer plan; actual capacity may be reduced by cargo overhang, securing requirements, weight distribution and carrier requirements. Always check the CSC plate and the carrier specification for the specific container before booking.
