40′ Pallet Wide Container (PW)

About the 40′ PW container

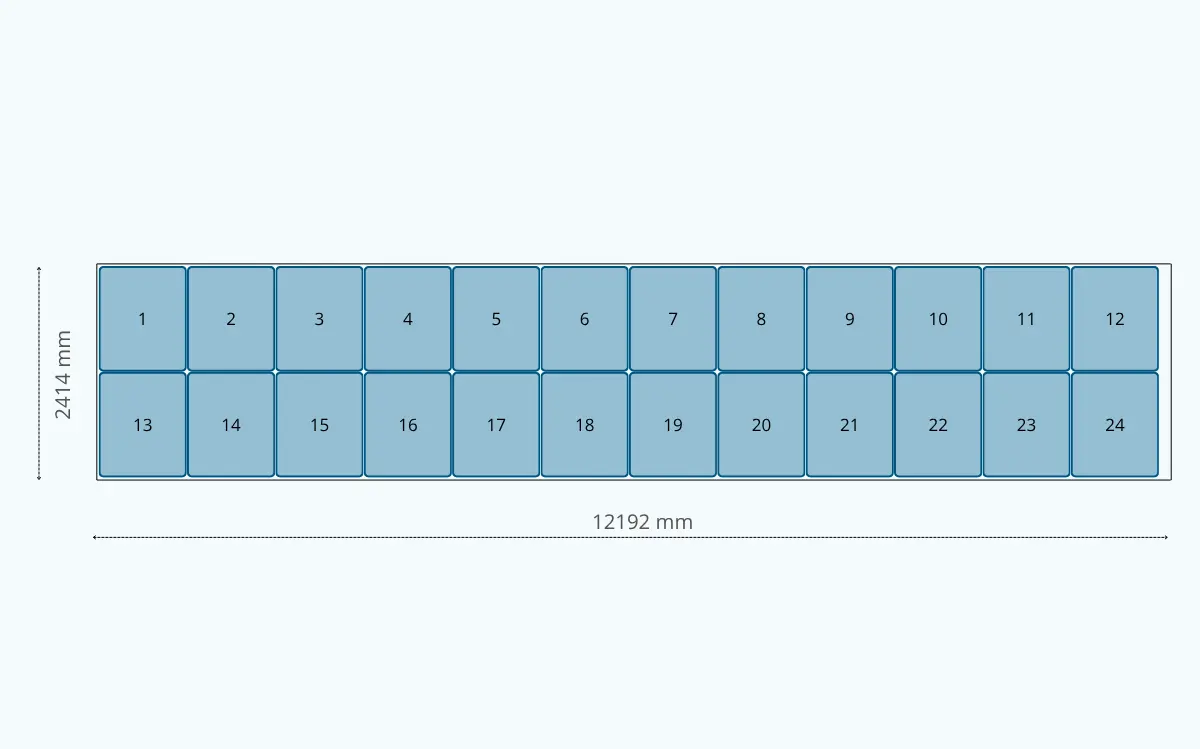

40′ The Pallet Wide container is designed to maximise floor utilisation for Euro pallets. Its greater internal width allows up to 30 Euro pallets (1,200 × 800 mm) or 24 standard / industrial pallets (1,200 × 1,000 mm) to be arranged in a single layer. It is a practical solution for large flows of palletised goods, but because of the wider body, compatibility with the carrier, terminal, chassis and route should be checked in advance.

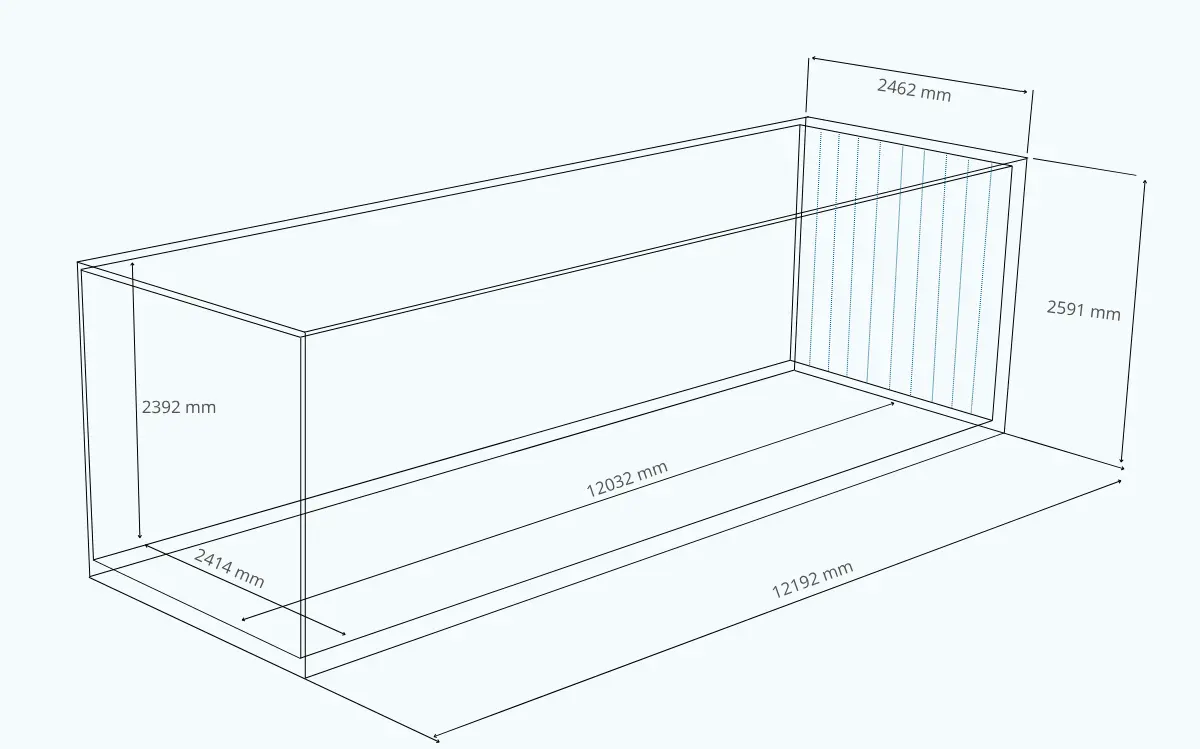

Internal dimensions

Unit of measurement Length Width Height
Millimeters 12,032 2,414 2,392
Feet 39′ 5 3/4″ 7′ 11″ 7′ 10 1/8″

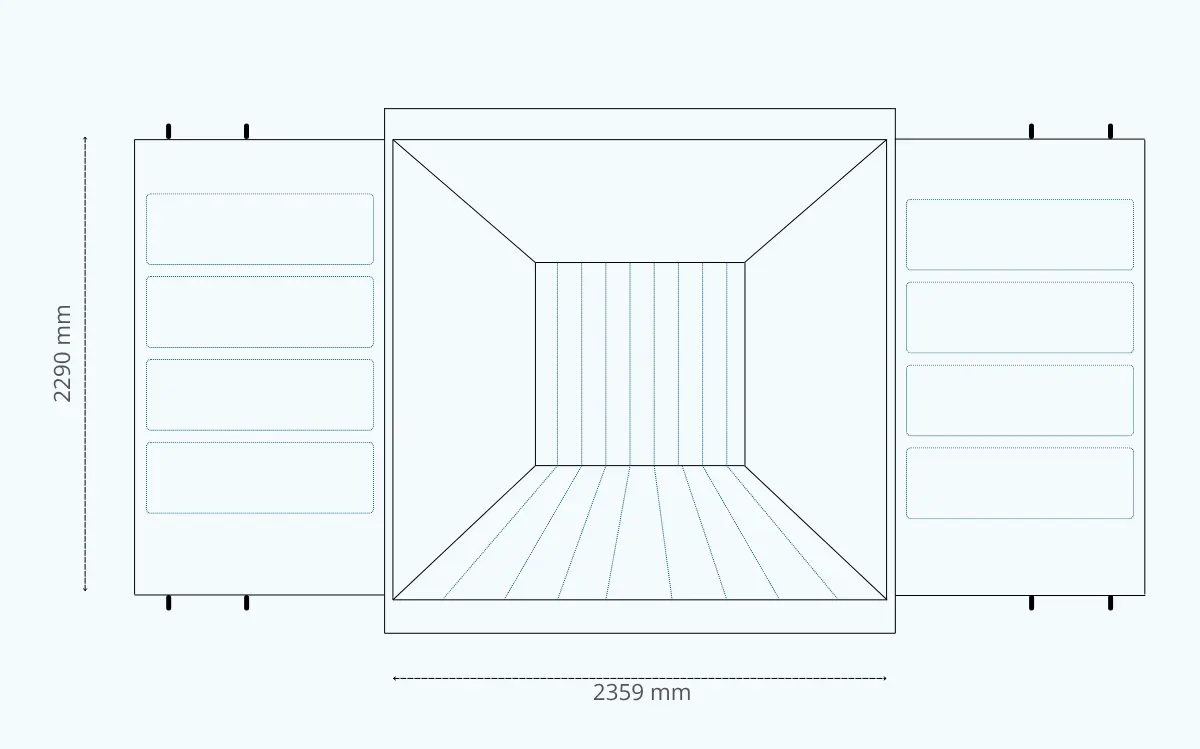

Door dimensions

Unit of measurement Width Height
Millimeters 2,359 2,290
Feet 7′ 8 7/8″ 7′ 6 1/8″

Weight

Unit of measurement Maximum gross weight Tare weight Maximum payload
Kilograms 30,480 3,800 26,680
Pounds 67,197 8,378 58,819

The dimensions, weights and pallet capacities shown are indicative and are based on the specification examples used in the visualiser. Actual values may vary by manufacturer and container series. Pallet capacity is a geometric single-layer plan; actual capacity may be reduced by cargo overhang, securing requirements, weight distribution and carrier requirements. Always check the CSC plate and the carrier specification for the specific container before booking.
